SFK-247 SFK-259 Industrial Plug

SFK-247 SFK-259

Earth contact position 4h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 140 173
b 116 144
c 43.5 57
d 38.5 51
e 17.5 25
f 47 62
g 58 80.7
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A, 32A
Voltage(V):  110-130V~2P+E
Protection degree:  IP44

SFK-248 SFK-260 Industrial Plug

SFK-248 SFK-260

Earth contact position 6h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 140 173
b 116 144
c 43.5 57
d 38.5 51
e 17.5 25
f 47 62
g 58 80.7
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A, 32A
Voltage(V):  220-240V~2P+E
Protection degree:  IP44

SFK-252 SFK-264 Industrial Plug

SFK-252 SFK-264

Earth contact position 6h
Rated current(A) 16 32
Pole 4
Dimension(mm) a 140 173
b 116 144
c 49.5 57
d 43.5 51
e 21.5 25
f 52 62
g 66.7 80.7
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A, 32A
Voltage(V):  380-415V~3P+E
Protection degree:  IP44

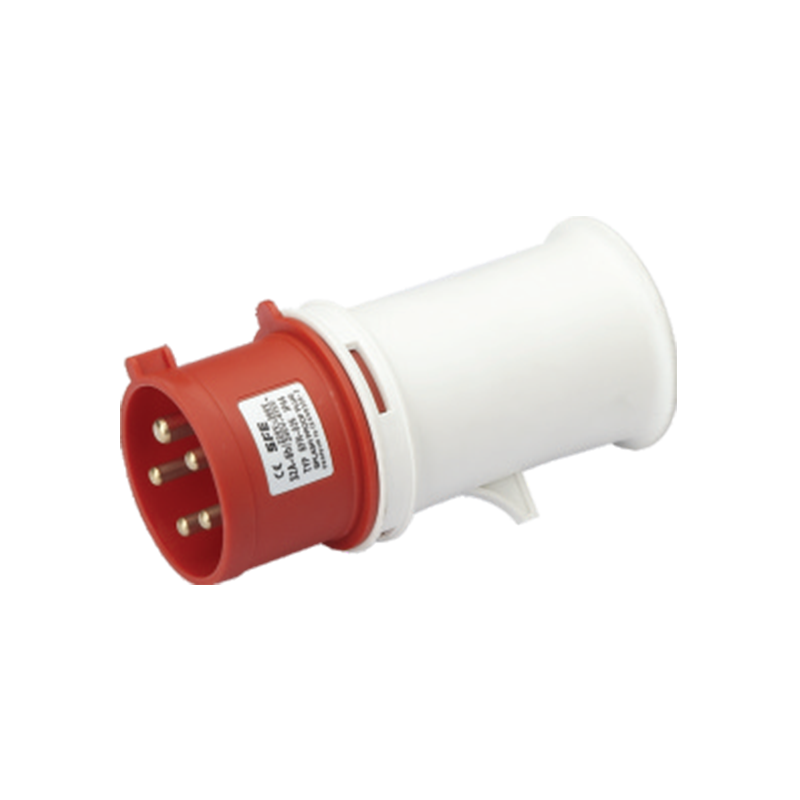

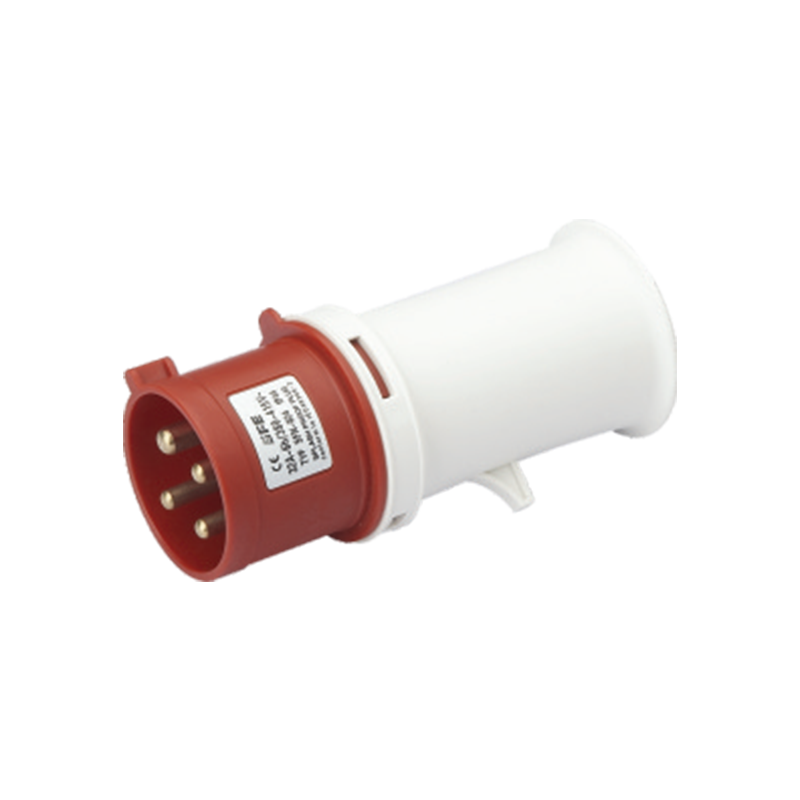

SFK-3 SFK-4 Industrial Plug

SFK-3 SFK-4

Earth contact position 6h
Rated current(A) 16 32
Pole 5

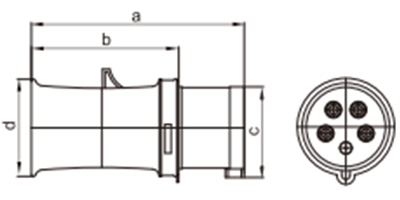

Dimension(mm) a 144 173
b 121 144
c 56 63.3
d 50 56.5
e 26.5 30.3
f 60 68.7
g 75 89
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A, 32A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP44

SFK-1226 Industrial Plug

SFK-1226

Earth contact position 4h
Rated current(A) 63
Pole 3
Dimension(mm) a 238.9
b 179.4
c 66
d 100.1
e 75.5
f 36.5
g 69.5
Cable nominal cross-section area(mm²) 10-16
Current(A):  63A
Voltage(V):  110-130V~2P+E
Protection degree:  IP44

SFK-1227 Industrial Plug

SFK-1227

Earth contact position 6h
Rated current(A) 63
Pole 3
Dimension(mm) a 238.9
b 179.4
c 66
d 100.1
e 75.5
f 36.5
g 69.5
Cable nominal cross-section area(mm²) 10-16
Current(A):  63A
Voltage(V):  220-240V~2P+E
Protection degree:  IP44

SFK-1231 Industrial Plug

SFK-1231

Earth contact position 6h
Rated current(A) 63
Pole 4
Dimension(mm) a 238.9
b 179.4
c 66
d 100.1
e 75.5
f 36.5
g 69.5
Cable nominal cross-section area(mm²) 10-16
Current(A):  63A
Voltage(V):  380-415V~3P+E
Protection degree:  IP44

SFK-1235 Industrial Plug

SFK-1235

Earth contact position 6h
Rated current(A) 63
Pole 5
Dimension(mm) a 238.9
b 179.4
c 66
d 100.1
e 75.5
f 36.5
g 69.5
Cable nominal cross-section area(mm²) 10-16
Current(A):  63A
Voltage(V):  220-380V~/240-415V~ 3P+N+E
Protection degree:  IP44

SFK-277 SFK-289 Industrial Plug

SFK-277 SFK-289

Earth contact position 4h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 138 170
b 115 141
c 24.7 32.5
d 70.2 93.3
e 38.3 51
f 17.5 25
g 47 62.2
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  110-130V~2P+E
Protection degree:  IP67

SFK-278 SFK-290 Industrial Plug

SFK-278 SFK-290

Earth contact position 6h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 138 170
b 115 141
c 24.7 32.5
d 70.2 93.3
e 38.3 51
f 17.5 25
g 47 62.2
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  220-240V~2P+E
Protection degree:  IP67

SFK-282 SFK-294 Industrial Plug

SFK-282 SFK-294

Earth contact position 6h
Rated current(A) 16 32
Pole 4
Dimension(mm) a 144 170
b 120.5 141
c 25.2 32.5
d 78 93.3
e 43.8 51
f 21.5 25
g 52.2 62.2
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

SFK-288 SFK-300 Industrial Plug

SFK-288 SFK-300

Earth contact position 6h
Rated current(A) 16 32
Pole 5
Dimension(mm) a 144 177
b 120.5 148
c 25.2 32.5
d 87 101
e 50.2 56.5
f 26.5 30.3
g 60 68.7
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67
